How to change the TVirtualImageList editor?

[luciano_f 3]

I use it a lot but your editor is horrible, how could I generate a new bpl and make some changes including saving the size and position

What is the pas file and the dfm? How could I reregister the editor when clicking on the component?

[DelphiUdIT 89]

The source file of Image List Editor is: "C:\Program Files (x86)\Embarcadero\Studio\22.0\source\Property Editors\ImgEdit.pas"



How to construct a new property editor and register it is behind my knowledge.



P.S.: I don't know if the releases (Community, Professional) have those sources.

Edited September 30 by DelphiUdIT

[luciano_f 3]

25 minutes ago, DelphiUdIT said:

The source file of Image List Editor is: "C:\Program Files (x86)\Embarcadero\Studio\22.0\source\Property Editors\ImgEdit.pas"



How to construct a new property editor and register it is behind my knowledge.



P.S.: I don't know if the releases (Community, Professional) have those sources.

How could I generate the property record by changing these files?

[Uwe Raabe 1682]

1 hour ago, DelphiUdIT said:

The source file of Image List Editor is: "C:\Program Files (x86)\Embarcadero\Studio\22.0\source\Property Editors\ImgEdit.pas"

This Editor is for TImageList, not for TVirtualImageList. AFAIK, the editor for TVirtualImageList is not shipped as source.

[luciano_f 3]

9 minutes ago, Uwe Raabe said:

This Editor is for TImageList, not for TVirtualImageList. AFAIK, the editor for TVirtualImageList is not shipped as source.

Even though it is not supplied with the sources, there must be some way to create a form that inherits it so that I can change and register this new editor

[luciano_f 3]

13 hours ago, luciano_f said:

Even though it is not supplied with the sources, there must be some way to create a form that inherits it so that I can change and register this new editor

Looking through ProcessHacker I found the class but I didn't find the files that refer to it  "TImageCollectionEditorForm"

[Uwe Raabe 1682]

57 minutes ago, luciano_f said:

but I didn't find the files that refer to it  "TImageCollectionEditorForm"

Try unit Imagecollectioneditorthe in the dclwinx package.

Edited October 1 by Uwe Raabe

[luciano_f 3]

2 minutes ago, Uwe Raabe said:

Try unit Imagecollectioneditorthe in the dclwinx package.



where do I find this ?

can you put the link ?

[Uwe Raabe 1682]

The package is part of the Delphi installation and the unit is included in the package. There is no source.

[luciano_f 3]

17 minutes ago, Uwe Raabe said:

The package is part of the Delphi installation and the unit is included in the package. There is no source.

I didn't find it and I looked on the web and there aren't even any references.



Can you attach it here?



Tell me will you do what I need ?



[Uwe Raabe 1682]

dclwinx.dcp is located in lib\win32\release in the Delphi folder and the corresponding design package (dclwinx280.bpl for Delphi 11) is located in the bin folder.



You won't find anything on the web for it, neither the package nor the unit, because Embarcadero doesn't provide any information for it.

[luciano_f 3]

1 hour ago, Uwe Raabe said:

dclwinx.dcp is located in lib\win32\release in the Delphi folder and the corresponding design package (dclwinx280.bpl for Delphi 11) is located in the bin folder.



You won't find anything on the web for it, neither the package nor the unit, because Embarcadero doesn't provide any information for it.

I don't understand your explanation because this file "ImageCollectionEditor" doesn't exist
I downloaded the trial architect 11.3 version and couldn't find it

Can you attach the file here on the forum please

[luciano_f 3]

10 hours ago, Uwe Raabe said:

Try unit Imagecollectioneditorthe in the dclwinx package.

Do you have this file on your machine ?



[gkobler 28]

8 hours ago, luciano_f said:

Can you attach the file here on the forum please

It's not allowed to submit some files from Delphi, i think

[Uwe Raabe 1682]

10 hours ago, luciano_f said:

I don't understand your explanation because this file "ImageCollectionEditor" doesn't exist

I didn't say the file exists. When a unit is neither provided as source nor as a compiled DCU, it can still be provided inside a DCP file, which is the case for the unit ImageCollectionEditor. It is contained inside dclwinx.dcp and thus can be used in other design packages. I cannot give a link or attach that file because it is not listed under the Redist folder of Delphi.

[luciano_f 3]

24 minutes ago, Uwe Raabe said:

I didn't say the file exists. When a unit is neither provided as source nor as a compiled DCU, it can still be provided inside a DCP file, which is the case for the unit ImageCollectionEditor. It is contained inside dclwinx.dcp and thus can be used in other design packages. I cannot give a link or attach that file because it is not listed under the Redist folder of Delphi.

Could you explain to me then how I could use it? From the dcp?


[Softacom Company 2]

Right way to do it – make designtime package with own implementation of TVirtualImageListEditor and TImageCollectionEditor. Then in this BPL you need to register these new classes as ComponentEditor for TImageCollection and TVirtualImageList. If you need only small changes – you can make decedent of TImageCollectionEditorForm, do all your logic, and reuse it in own components editors.
Package text will looks like:

package Package1;

{$R *.res}
{$IFDEF IMPLICITBUILDING This IFDEF should not be used by users}
{$ALIGN 8}
{$ASSERTIONS ON}
{$BOOLEVAL OFF}
{$DEBUGINFO OFF}
{$EXTENDEDSYNTAX ON}
{$IMPORTEDDATA ON}
{$IOCHECKS ON}
{$LOCALSYMBOLS ON}
{$LONGSTRINGS ON}
{$OPENSTRINGS ON}
{$OPTIMIZATION OFF}
{$OVERFLOWCHECKS ON}
{$RANGECHECKS ON}
{$REFERENCEINFO ON}
{$SAFEDIVIDE OFF}
{$STACKFRAMES ON}
{$TYPEDADDRESS OFF}
{$VARSTRINGCHECKS ON}
{$WRITEABLECONST OFF}
{$MINENUMSIZE 1}
{$IMAGEBASE $400000}
{$DEFINE DEBUG}
{$ENDIF IMPLICITBUILDING}
{$IMPLICITBUILD ON}

requires
  rtl,
  dclWinx;

contains
  Unit3 in 'Unit3.pas';
end.

And your unit will be:

unit Unit3;

interface

uses
  {winxreg,} imagecollectionEditor, classes;

type
  TMyImageCollectionEditorForm = class(imagecollectionEditor.TImageCollectionEditorForm)
  public
    constructor Create(AOwner: TComponent); override;
    destructor Destroy; override;
  end;

implementation

{ TMyImageCollectionEditorForm }

constructor TMyImageCollectionEditorForm.Create(AOwner: TComponent);
begin
  inherited;
  //do restoring position of editor
end;

destructor TMyImageCollectionEditorForm.Destroy;
begin
  //do saving position of editor
  inherited;
end;

end.

Editor form for TVirtualImageList called TVirtualImageListEditorForm and it’s saved in unit VirtualImageListEditor. You can make decedent without sources in same way.

Edited October 2 by Softacom Company

[luciano_f 3]

@Softacom Company



this doesn't compile







Could you change this package for me ?

ImageListEdit Change.7z



Edited October 2 by luciano_f

[Softacom Company 2]

35 minutes ago, luciano_f said:

@Softacom Company



this doesn't compile







Could you change this package for me ?

ImageListEdit Change.7z

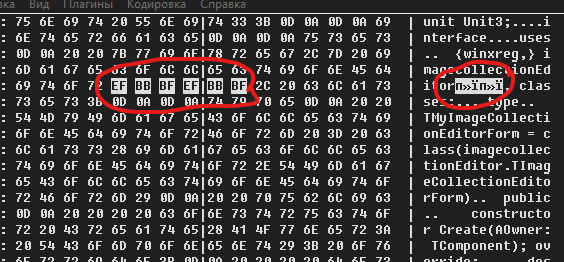

It’s does not compile because text includes unprintable characters in uses section.

Here is a fixed version:

ImageListEdit Change.7z

[luciano_f 3]

@Softacom Company



Sorry for my ignorance, as I don't have enough knowledge to create and change components, could my colleague give me some help?

How could I create a new form that inherits from "TImageCollectionEditorForm" and I can make changes to it? I tried but I couldn't and also how could I register this BPL, see attached what I did



ImageListEdit Form.7z



If I could have access to the form I would change more things, such as this huge image preview area, see attached.





Edited October 2 by luciano_f

[Softacom Company 2]

As we see – you don’t have any experience at component development. If you don't have original sources - you can't just make form in designer, you must do all your changes by your sources.

...
  Self.BorderIcons := [biSystemMenu, biMinimize, biMaximize, biHelp];
  Self.SourceImagesView.Margins.Bottom := 5;
...

we add into your package example how we can make component editor for TImageCollection with using of decedent of TImageCollectionEditorForm.

If you want - you can develop completely new form and use it by this editor. Also, you can make any other component editors for TVirtualImageList or any other components.

ImageListEdit Form.7z

P.S. Our recomentation - first read some doc about what is it "Component Editors" and how to make it.

Edited October 2 by Softacom Company

[luciano_f 3]

1 hour ago, Softacom Company said:

As we see – you don’t have any experience at component development. If you don't have original sources - you can't just make form in designer, you must do all your changes by your sources.

...
  Self.BorderIcons := [biSystemMenu, biMinimize, biMaximize, biHelp];
  Self.SourceImagesView.Margins.Bottom := 5;
...

we add into your package example how we can make component editor for TImageCollection with using of decedent of TImageCollectionEditorForm.

If you want - you can develop completely new form and use it by this editor. Also, you can make any other component editors for TVirtualImageList or any other components.

ImageListEdit Form.7z

P.S. Our recomentation - first read some doc about what is it "Component Editors" and how to make it.



I am very grateful

I managed to place the Splitter, Maximize form button but the create is not triggered See how I did it



constructor TMyImageCollectionEditorForm.Create(AOwner: TComponent);
begin
  inherited;


  Showmessage('Test'); do not execute this message

Self.BorderIcons := [biSystemMenu, biMaximize];

end;



procedure TMyImageCollectionEditor.ExecuteVerb(Index: Integer);
Var Splitter1: TSplitter;
begin
  //here we implement action when someone click on our menu item
  inherited;

  case Index of
    0: begin
      if Self.Component is TImageCollection then begin
        var xImCol := Self.Component as TImageCollection;
        var xMyEditor := TMyImageCollectionEditorForm.CreateEx(Nil, xImCol);
        try
          xMyEditor.BorderIcons := [biSystemMenu, biMaximize];

          xMyEditor.GroupBox1.Margins.Top := 3;
          xMyEditor.GroupBox1.Margins.Bottom := 3;
          xMyEditor.GroupBox1.Margins.Left := 3;
          xMyEditor.GroupBox1.Margins.Right := 10;

          xMyEditor.GroupBox2.Margins.Top := 3;
          xMyEditor.GroupBox2.Margins.Bottom := 3;
          xMyEditor.GroupBox2.Margins.Left := 3;
          xMyEditor.GroupBox2.Margins.Right := 10;

          Splitter1 := TSplitter.Create(xMyEditor);
          Splitter1.Parent := xMyEditor;
          Splitter1.Visible := True;
          Splitter1.Align := alBottom;
          Splitter1.Height := 9;
          Splitter1.Color := clHighlight;
          Splitter1.Top := xMyEditor.GroupBox2.Top + xMyEditor.GroupBox2.Height;

          xMyEditor.ShowModal;
        finally
          xMyEditor.Free;
        end;
      end;
    end;
  end;
end;



[Softacom Company 2]

50 minutes ago, luciano_f said:



We are very grateful

We managed to place the Splitter, Maximize form button but the create is not triggered See how we did it



constructor TMyImageCollectionEditorForm.Create(AOwner: TComponent);
begin
  inherited;


  Showmessage('Test'); do not execute this message

Self.BorderIcons := [biSystemMenu, biMaximize];

end;



procedure TMyImageCollectionEditor.ExecuteVerb(Index: Integer);
Var Splitter1: TSplitter;
begin
  //here we implement action when someone click on our menu item
  inherited;

  case Index of
    0: begin
      if Self.Component is TImageCollection then begin
        var xImCol := Self.Component as TImageCollection;
        var xMyEditor := TMyImageCollectionEditorForm.CreateEx(Nil, xImCol);
        try
          xMyEditor.BorderIcons := [biSystemMenu, biMaximize];

          xMyEditor.GroupBox1.Margins.Top := 3;
          xMyEditor.GroupBox1.Margins.Bottom := 3;
          xMyEditor.GroupBox1.Margins.Left := 3;
          xMyEditor.GroupBox1.Margins.Right := 10;

          xMyEditor.GroupBox2.Margins.Top := 3;
          xMyEditor.GroupBox2.Margins.Bottom := 3;
          xMyEditor.GroupBox2.Margins.Left := 3;
          xMyEditor.GroupBox2.Margins.Right := 10;

          Splitter1 := TSplitter.Create(xMyEditor);
          Splitter1.Parent := xMyEditor;
          Splitter1.Visible := True;
          Splitter1.Align := alBottom;
          Splitter1.Height := 9;
          Splitter1.Color := clHighlight;
          Splitter1.Top := xMyEditor.GroupBox2.Top + xMyEditor.GroupBox2.Height;

          xMyEditor.ShowModal;
        finally
          xMyEditor.Free;
        end;
      end;
    end;
  end;
end;



Your showmessage does not trigger because you override constructor Create, but call constructor CreateEx.

Unfortunately, you cannot override CreateEx, because embarcadero does not made it virtual, but you can create your own additional constructor or class method which will call inherited CreateEx inside, or leave all code inside ExecuteVerb.

Edited October 2 by Softacom Company

[luciano_f 3]

1 minute ago, Softacom Company said:

Your showmessage does not trigger because you override constructor Create, but call constructor CreateEx.

Unfortunately, you cannot override CreateEx, because embarcadero does not made it virtual, but you can create your own additional constructor or class method which will call inherited CreateEx inside.

Can you create an example for my understanding?

Grateful.

[Softacom Company 2]

Sure, it can be done like this:

...
type
  TMyImageCollectionEditorForm = class(TImageCollectionEditorForm)
  public
    constructor Create(AOwner: TComponent); override;
    constructor CreateAndInit(AImageCollection : TImageCollection); virtual;

    destructor Destroy; override;
  end;
...
constructor TMyImageCollectionEditorForm.CreateAndInit(
  AImageCollection: TImageCollection);
begin
  inherited CreateEx(nil, AImageCollection);
  BorderIcons := [biSystemMenu, biMaximize];

  GroupBox1.Margins.Top := 3;
  GroupBox1.Margins.Bottom := 3;
  GroupBox1.Margins.Left := 3;
  GroupBox1.Margins.Right := 10;

  GroupBox2.Margins.Top := 3;
  GroupBox2.Margins.Bottom := 3;
  GroupBox2.Margins.Left := 3;
  GroupBox2.Margins.Right := 10;

  var Splitter1 := TSplitter.Create(self);
  Splitter1.Parent := self;
  Splitter1.Visible := True;
  Splitter1.Align := alBottom;
  Splitter1.Height := 9;
  Splitter1.Color := clHighlight;
  Splitter1.Top := GroupBox2.Top + GroupBox2.Height;
end;

procedure TMyImageCollectionEditor.ExecuteVerb(Index: Integer);
begin
...
  var xMyEditor := TMyImageCollectionEditorForm.CreateAndInit(xImCol);
...
end;

P.S. Did you know that you can debug Design-Time packages? Just go Run->Parameters->HostApplication and pick there Delphi ( C:\Program Files (x86)\Embarcadero\Studio\22.0\bin\bds.exe). It’s will raise few expected exceptions, but now when you will press F9 you will start another Delphi instance and debug your sources for design-time.  It will be better than using showmessages.
